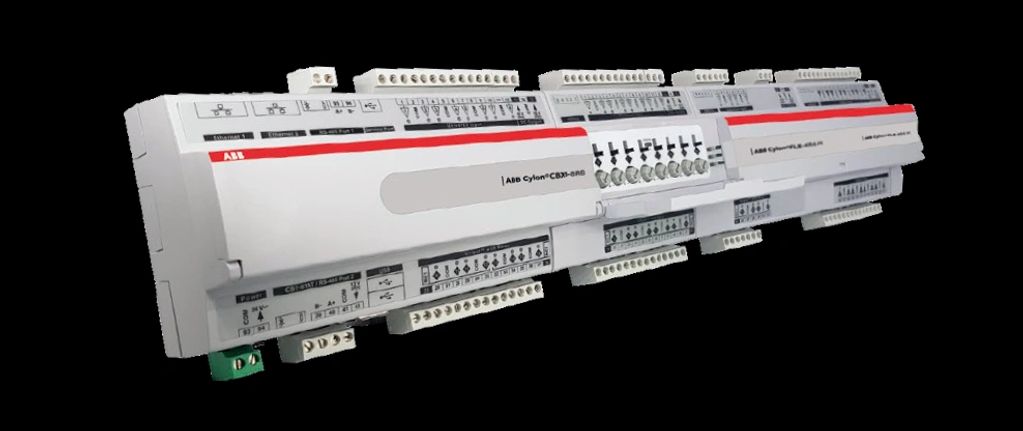

The CBX System is the most advanced BACnet controller of its kind, with on-board I/O, optional HOA, multi-protocol support and a range of FLX (Field Level eXpansion) modules, providing ABB Cylon® System Integrators with even greater control flexibility. The CBX System provides a flexible and expandable building energy management solution for intelligent control of HVAC equipment, lighti
16- Point BACnet® B-AAC programmable controller with HOA switches and potentiometers for control and monitoring of HVAC equipment and plants. Controller features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. Includes support for 4 Modbus® RTU devices or 40 points.
14-Point BACnet B-AAC programmable controller for terminal applications such as heat pump, roof top unit, fan coil, chilled ceiling, and small air handling units. Controller features 3 UniPutsTM with Triac outputs (software configured for AI, AO, DI or DO-T (Triac), 6 UI and 5 Digital (Relay) Outputs. Freely programmable, no pre-loaded strategy
The CBV Series is a range of BTL Listed BACnet® Advanced Application Controllers (B-AAC) with 2 UniPuts™, 4 Universal Inputs and 3 Digital (Triac) Outputs, along with an integrated airflow sensor and actuator. CBV controllers use the BACnet® MS/TP LAN communication protocol.
The CBV Series is suitable for controlling single duct or fan assisted Variable Air Volume (VAV) applications.
CXproHD is a suite of software applications that allows all facets of ABB Cylon´s ® CB Line of BACnet controllers to be designed, engineered, programmed, configured, tested, commissioned and maintained with minimal engineering effort. CXproHD puts you in control of delivering energy efficient systems.
CXproHD empowers you to manage all aspects of controllers and sites to be designed, configured,
NEXUS-2128 with 2 x RS485 protector and US PSU. Now includes mandatory surge protection for RS485 ports and a Dell specified power supply. Installation required for warranty.
MATRIX ACE (ASPECT® Control Engine) with embedded ASPECT® runtime engine and web UI, includes 2 EIA-485 ports, configurable for 9.6 to 115.2 kbps, capable of supporting up to a total of 64 devices (either MS/TP or TCP/IP) or 1,750 points. Support for 2 RS-485 protocols (BACnet MS/TP, Modbus RTU, AAM PUP or Teletrol TSC), and a maximum of 64 MS/TP devices per port. One RJ-45 10/100 MB Et
